Product

Etc.

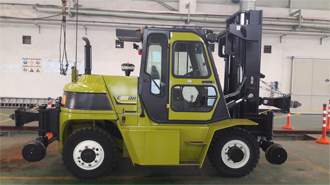

Towing Car

This vehicle is designed to tow railway vehicles (Motor Car) from the railway vehicle base. A traction device can be attached to this vechicle to tow railway vehicles and is designed for ground and track use.

Water Tank Trailer

This equipment was manufactured for the cleaning of underground section ballast and the maintenance of facility. Its water tank capacity is 10,000§¤ and 8.5HP water pump is mounted. The maximum speed is 35km/h when the water level is full.

Gauge 1,435mm
Overall Dimensions (L) 6800 (W) 2500 (H) 3450
Wheel Diameter ¨ª 500
Trailer Weight Approx. 16,000kg
Tank Capacity Approx. 10,000L
Brake System Continuous air brake
Max. Speed 50 km/h
Spray Pressure 12 bar

Re-railing Device

This is a hydraulic self-derailing device that can perform emergency restoration in case of derailment of a car. It is attached to the front side of front/rear bumper to allow easy operation. Top/bottom and left/right movements are allowed, and its structure prevents the device from being damaged in case of derailment.

Up-Down Stroke 530mm
Traversal Stroke 300mm

Patrol Handy Motor Car

A worker can easily operate this car to inspect the condition of aboveground and underground line and facility and to check the existence of an obstacle inside the line.

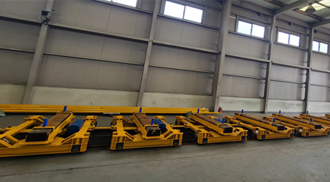

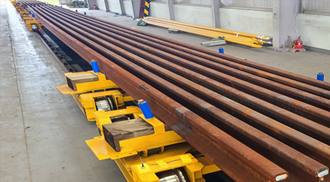

trolley

It is operated by being towed by a motor car in a non-self-propelled manner and is used for loading, transporting, and unloading pole rails for track repair.
